E9X M3 Ohlins Road & Track Coilover Kit

Features

• Ride-height adjustable
• Matched compression and rebound hydrodynamics
• Consistent high-tolerance reliability
• Fully rebuildable
• Includes all hardware and instructions for installation
• DFV technology (Dual Flow Valve)
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty
• Kit includes springs

Features Front

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 5 - 35 mm lower than standard with recommended setup
• Spring rate 60 N/mm
• Dust covers
• Use with original top mounts

Features Rear

• Conventional Shock Absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 5 - 35 mm lower than standard with recommended setup
• Spring rate 120 N/mm
• Dust covers
• Use with original top mounts

Kit Includes

• Coil over kit incl. springs
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

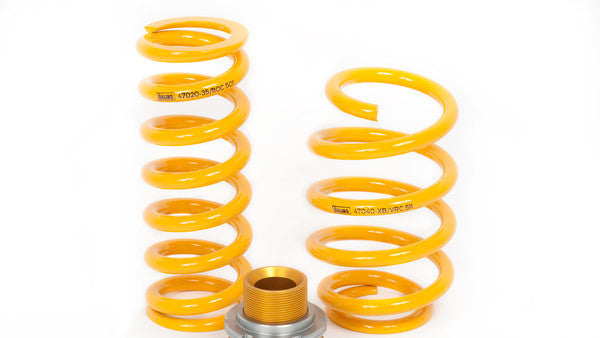

Spring Rates

• Front: 60 N/mm // 343 lbs/in. // 6 k/mm
• Rear: 120 N/mm // 686lbs/in. // 12 k/mm
